NDB Writer - Printed circuit design CAD data conversion software

  • It is a tool which changes a CAD Data into the NDB file which can read the gratis viewer tool

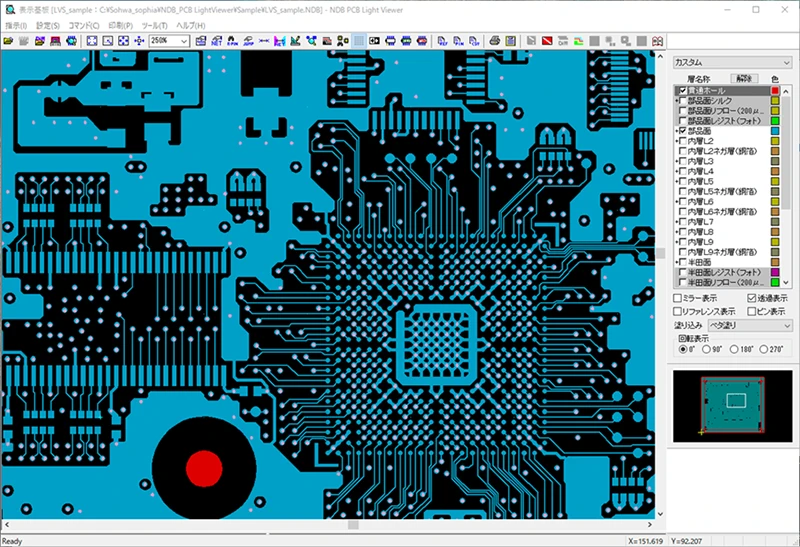

    NDB LightViewer
    The effect by cooperation (collaboration) is offered in a design review, and manufacture support and various scenes.

Summary

PartsSaverF'z+ is a data management system which has a Registration of the Parts library Information created by printed circuit design, and a search service, and it unites with all Parts library management environment by various CAD-interface functions.

Design data's safety serious consideration

Since the changed NDB file is an original format, even if it should cross to the 3rd person's hand, there are neither appropriation nor worries about secondary elaboration.

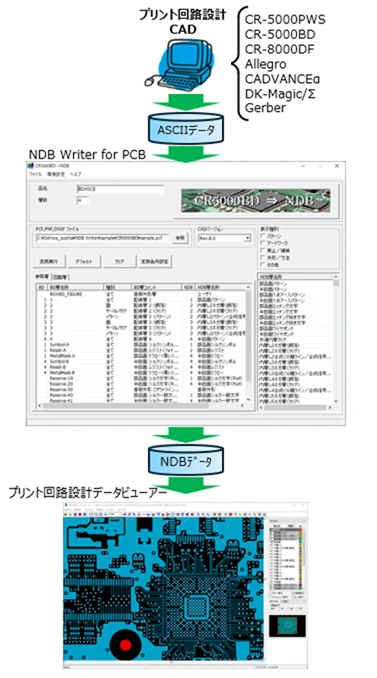

NDB conversion tool for printed circuit design data (NDB Writer for PCB)

Even if this system does not have CAD, it is a tool which changes a CAD data into the NDB data which can be read with a "NDB LightViewer printed circuit design data viewer" for the purpose of perusing substrate design data by a check of drawing etc.

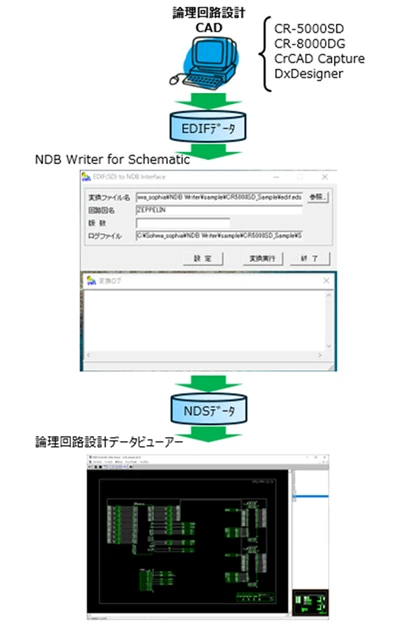

NDB conversion tool for logic circuit design data (NDB Writer for Schematic)

Even if this system does not have CAD, it is a tool which changes a CAD Data into the NDB Data which can be loaded by "NDB_Schematic LighViewer" for the purpose of perusing a circuitry Data.

Files

CAD　Files
CR5000/PWS　　　　(Zuken)BSF/MDF/UDF/WDF *
(PMA/CCF/WSF/Hole Definition file/Inserter files)
CR5000/BD　　　　　(Zuken)PCF（PNF）/FTF/CDF/PKF *
Allegro　　　　　　
(CADENCE)		CMP/PIN/PAD/FGO/LAY/NET/SYM/CLS
NLT/PSK/TXT/TEC/Rule file
（Flash/Thermal definition files）
CADVANCE Alpha　　　　(YDC)DBG/DBR/NET
Gerber(274D)RS-274D format/D code table (only this tool)
Drill formats(Excellon)/Tool list file(only this tool)
Gerber(274X)RS-274X
Drill formats(Excellon)/Tool list file(only this tool)
Logic (Schematic) CAD

EDIF-200 formats

  - CR5000/SD(zuken) *

　(Data converter "CR5000SD->EDIF200-Schematic-view"

  - OrCAD Capture（CADENCE）

　 ※Correspondence after OrCAD Capture R10

  - DxDesigner(Mentor Graphics) *
　 (EDIF Interfaces)

* Onerous I/F software of a CAD vendor is required.

Price

ProductsNode lock license（1license)Network license（1license)
first year
Renewal charge
first year
Renewal charge
NDB Writer for CR5000PWS
¥100,000-
¥50,000-
¥300,000-
¥150,000-
NDB Writer for CR5000BD
¥100,000-
¥50,000-
¥300,000-
¥150,000-
NDB Writer for Allegro
¥100,000-
¥50,000-
¥300,000-
¥150,000-
NDB Writer for CADVANCEα
¥100,000-
¥50,000-
¥300,000-
¥150,000-
NDB Writer for Gerber（274D)
¥100,000-
¥50,000-
¥300,000-
¥150,000-
NDB Writer for Gerber（274X)
¥100,000-
¥50,000-
¥300,000-
¥150,000-
NDB Writer for Schematic
¥100,000-
¥50,000-
¥300,000-
¥150,000-
  • In one year after purchase, as for the term of validity of a license, the The update of a license is needed for every 1 year in the 2nd and afterwards.
  • A renewal charge is a renewal expense of the license which you pay from the purchased following year.
  • By updating a license, upgrade and technical support can be received for one year.
  • The minimum composition of a network license form is "5 user and 1 license."
    "5 user and 1 license", the product concerned can be installed in a maximum of five personal computers, and it means sharing 1 license under network environment.
    In addition, since the application area of a network license has restriction, for details, please ask.
  • All above is tax omission prices.

Remarks

Evaluation before purchase is possible for this tool. Please contact us , if interested.

FAQ

QAbout a corresponding CAD system
A
  1.   1.CR-5000/PWS*( Rev.10 - Rev.22 )
        Required preparation file :BSF/MDF/UDF/WDF/CCF/WSF
        Arbitrary preparation file :PMA/Hole-Type definition file/inserter file
  2.   2.CR-5000/BD*( Rev.5.x - Rev.14.x )
        Required preparation file : PCF/FTF/CDF/PKF
  3.   3.Allegro(PE13.0 - SPB16.5)
        Required preparation file :CMP/FGO/LAY/NET/PAD/PIN/SYM/NLT/PSK/UPC/TEC/TXT/CLS
        Arbitrary preparation file :Flash/Thermal definition Information
  4.   4.CADVANCE-alpha*( Ver5.5 Rev4 - Ver6.5 Rev12/alpha III Ver2.2 )
        Required preparation file :DBG/DBR/Thermal slit definition file
        Arbitrary preparation file :NET
  5.   5.DK-Magic/sigma * (Ver12.00)
        Required preparation file :DBL/CMP/NET
  6.   6.CR-5000SD
        Required preparation file :EDF(EDIF2000 LEVEL0 )
  7.   7.OrCAD CAPTURE
        Required preparation file :EDS
  8.   8.DxDesigner
        Required preparation file :EDF(EDIF2000 LEVEL0 )

*: Ask for details.
*: Various ASCII input-and-output software currently sold by the appearance like a CAD vendor is required.
*: All the brand names indicated are the trademarks and registered trademarks of each company.

QAbout a hardware requirement
AHardware requirement of recommendation
  1.   1.NDB Writer for PCB (Converter)
        CPU： More than 1GHz (recommendation)
        Memory：More than 1GB (recommendation)
        OS： Windows 2000/Windows XP/Windows Vista/ Windows 7
  2.   2.NDB Light Viewer for PCB (Viewer)
        CPU： More than 1GHz (recommendation)
        Memory：More than 1GB (recommendation)
        OS： Windows 2000/Windows XP/Windows Vista/ Windows 7

*: All the brand names indicated are the trademarks and registered trademarks of each company.

QAbout a license form
A
  1.   1.Network license :
        That it can work simultaneously is a purchased licensed part.
        Use is possible at two or more sets.
        However, also when specifying the installable number of terminals, it is a certain .
  2.   2.Node lock license：
        License Fixed is carried out at the installed specification terminal.
        License is distributed by a hardware key.
    *: Base license is a network license.
    *: "NDB Light Viewer for PCB" is a free license.

QAbout processing time
A
  1.   1. Precondition   Machine Spec
        CPU: Core2 Quad, 2.8GHz
        Memory: 3GB
  2.   2. Processing Time Sample by Electrical circuit boards Pattern
    •     -Sample1
            10layers / About 4300 parts
            Data conversion time ≒ 15minutes
    •     -Sample2
            6layers / About 1700 parts
            Data conversion time ≒ 9minutes
    •     -Sample3
            6layers / About 1000 parts
            Data conversion time  ≒ 3.5minutes
    •     -Sample4
            4layers / About 45 parts
            Data conversion time  ≒ 3 seconds
  3.   3. Special Mention Matter
        In the case of the same Data Requirementses, if there is much quantity of a Final, a conversion Time will increase.
        In the case of the same Data Requirementses, a Time will be influenced if there are many Parts Types.
*: It is a premise that it is the above-mentioned machine spec.
*: A conversion Time changes with creation states of a Data.

Case

Case1

Purpose Check-of-drawing increase in efficiency after a design maker / board maker's design
Contents Printed circuit design is completed and the time delay by a plot output or dispatch processing is canceled at the time of a primary check of drawing.
Large shortening of the check-of-drawing data creation time was aimed at.

Case2

Purpose Circuit designer's check-of-drawing increase in efficiency
Contents The function for carrying out the check of drawing of the printed circuit design data, such as a function which displays a Layer in piles, was substantial, and it attained large increase in efficiency.

Case3

Purpose As the History tool of design business
Contents When printed circuit design business checked the last contents of a design and estimate, even if there was no CAD, by checking an electronic drawing, it estimated and aimed at improvement in accuracy of a design man day.

Case4

Purpose Increase in efficiency of a mounting design review.
Contents In the stage which the Part position ended, the increase in efficiency by the early detection of a problem and the advance of a plan was attained by distributing an electronic drawing to a mounting section.

Case5

Purpose Check-of-drawing increase in efficiency at the time of change-of-design / revision
Contents By displaying the difference of the last design data and the data after a change at the time of a change of design and revision, the check-of-drawing place was pinpointed and increase in efficiency was attained.
